DX-SW4M

DX-SW4M

GENERAL:

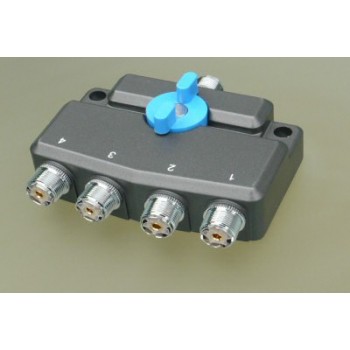

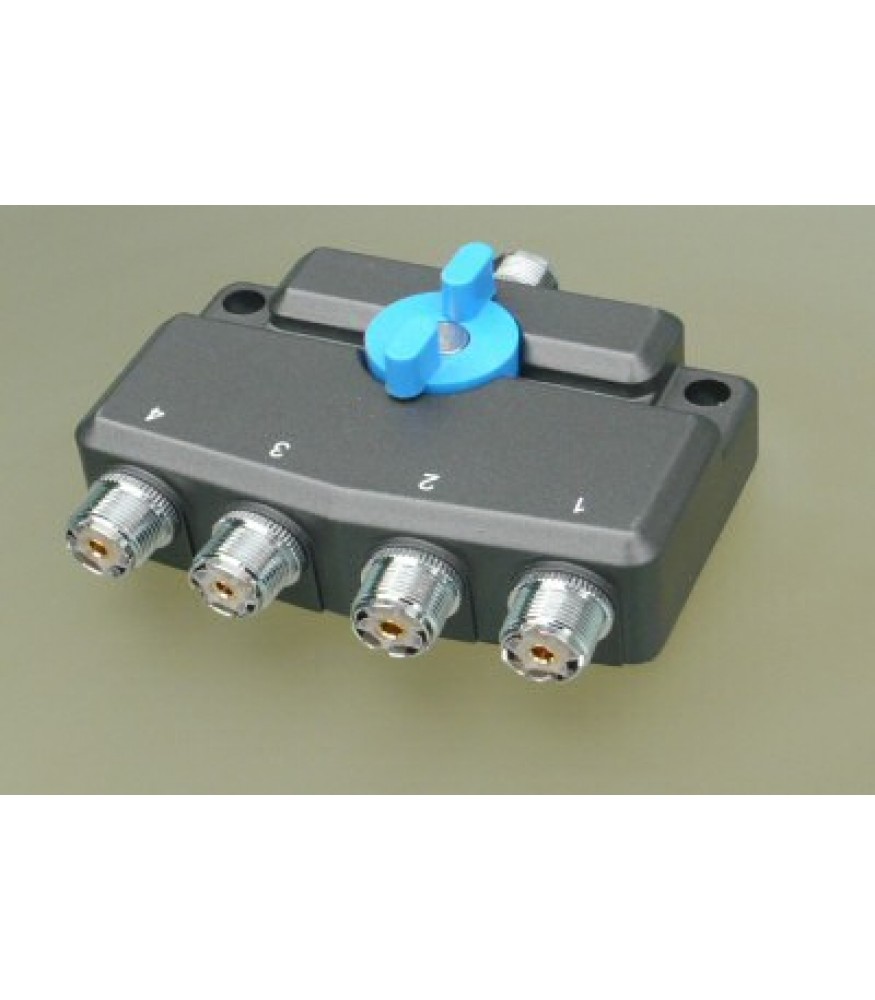

4-Position Coaxial Antenna Switch

FEATURES, FUNCTIONS AND SPECIFICATIONS:

FREQUENCY RANGE:
DC ~ 900MHz

CONNECTOR TYPE:
Input Port: UHF-Female (SO239)
Output Port: 4x UHF-Female (SO239)

POWER RANGE:
DC ~ 30MHz: 1.5KW
30MHz ~ 200MHz: 1KW
200MHz ~ 500MHz: 500W
500MHz ~ 900MHz: 150W

INSERTION LOSS:
DC ~ 500MHz: ≤0.10dB
500MHz ~ 900MHz: ≤0.20dB

OUTPUT PORT ISOLATION:
DC ~ 500MHz: 60.0dB
500MHz ~ 900MHz: 55.0dB

VSWR:
DC ~ 500MHz: ≤1.10
500MHz ~ 900MHz: ≤1.25

PACKING INCLUDES:
Antenna Switch
Datasheet

PDF about the DX-SW4M :

Brochure
