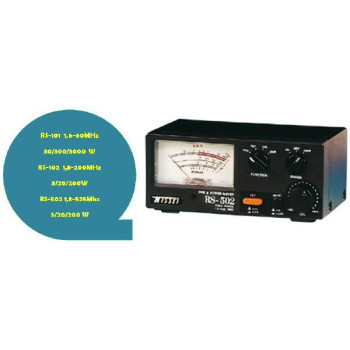

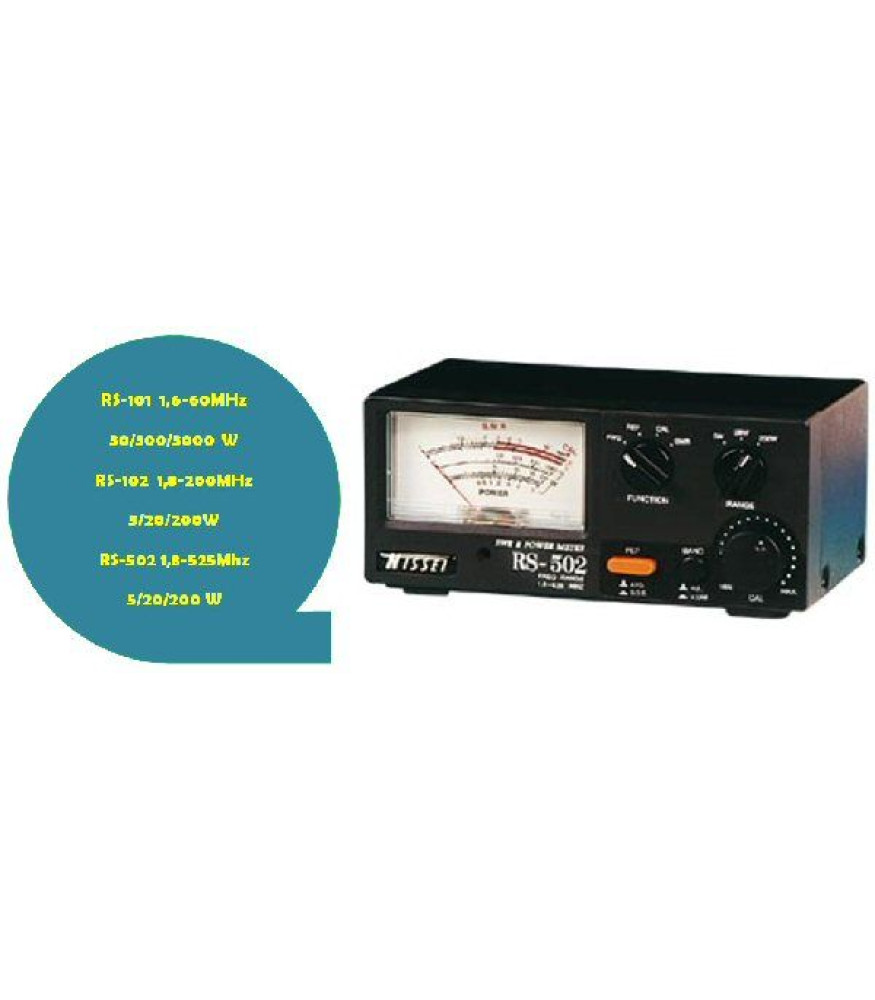

Nissei RS-502

Nissei RS-502

SWR-Power Meter.

• Frequency Range: 1.8 - 525 MHz

• SWR Sensitivity: Minimum  3 Watt

• Power Range: 5 Watt / 20 Watt / 200 Watt

• Maximum Power Rating: 200 Watt

• Measurement Functions: Forward RF Power, Reflected RF Power, SWR

• Connectors: UHF-Female ( SO-239 )

FEATURES, FUNCTIONS AND SPECIFICATIONS:

• The Wattmeters of the RS- series have a large instrument for

measuring direct power (AVG), P.e.P. in SSB, and reflected with SWR

display, high quality and excellent value for money.

• They have an accuracy of 5% (10% with 5W resolution - RS-101 10%), backlight

instrument, are equipped with connectors SO-239 (MJ).

• The RS-502 model has separate input and output connectors

depending on the selected band (1.8-200MHz or 125-525MHz).

PACKING INCLUDES:

1 Pc of SWR/Watt  Meter

1 Pc of 13,8 vdc Power Cable

1 Pc of User Manual English
