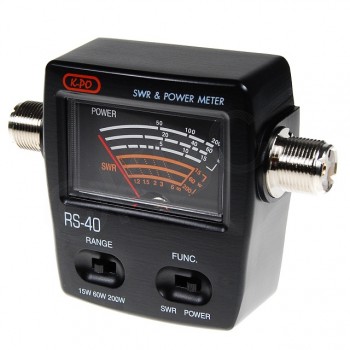

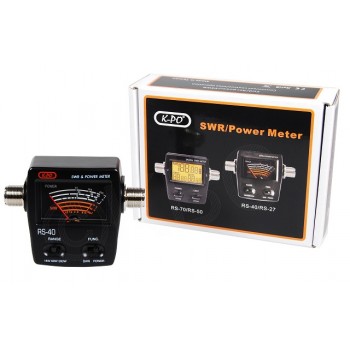

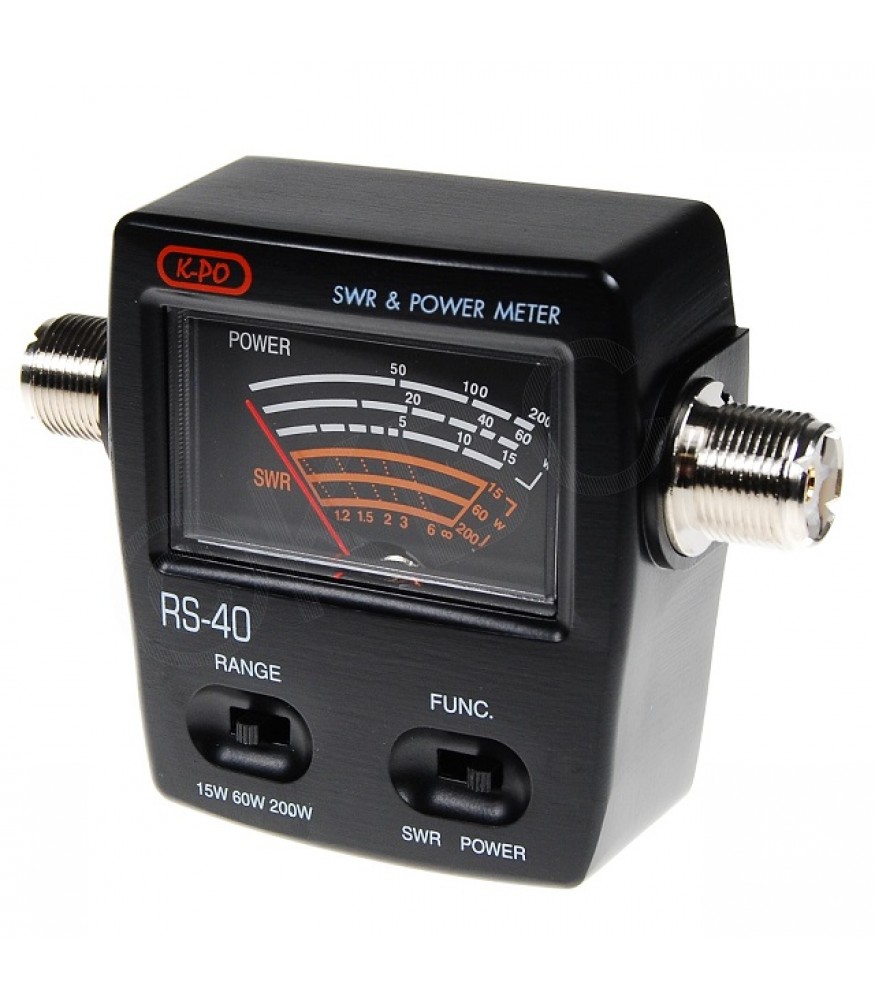

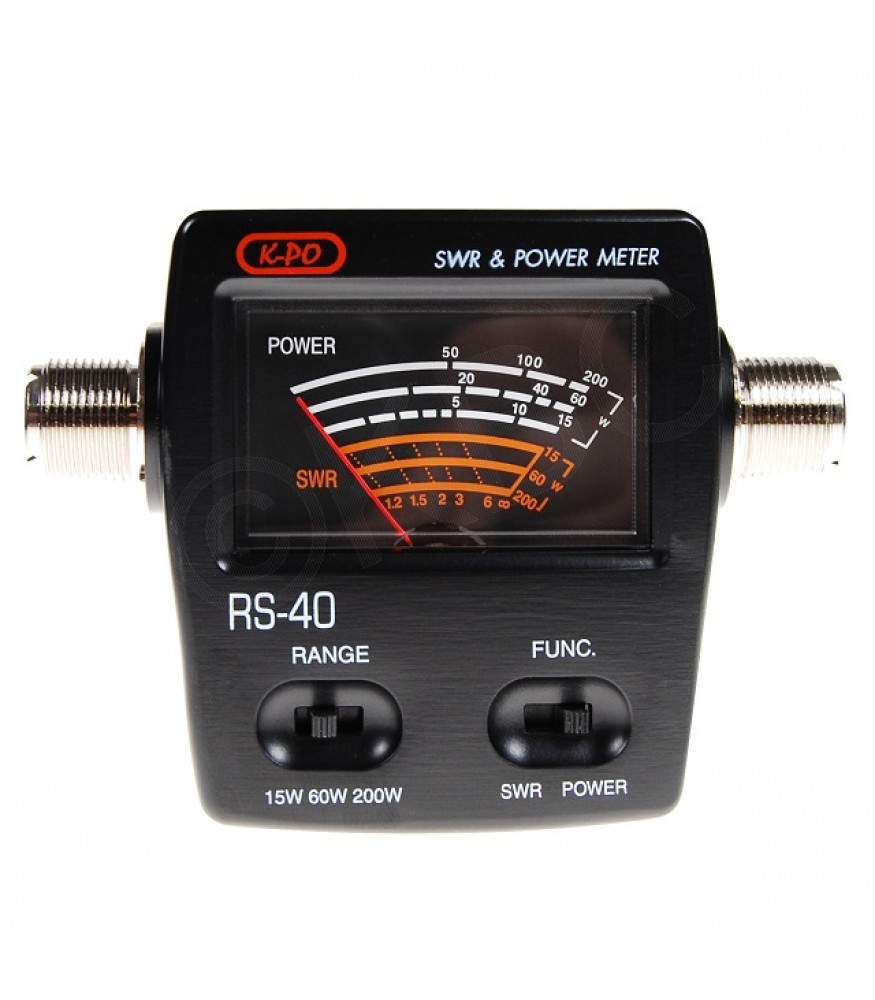

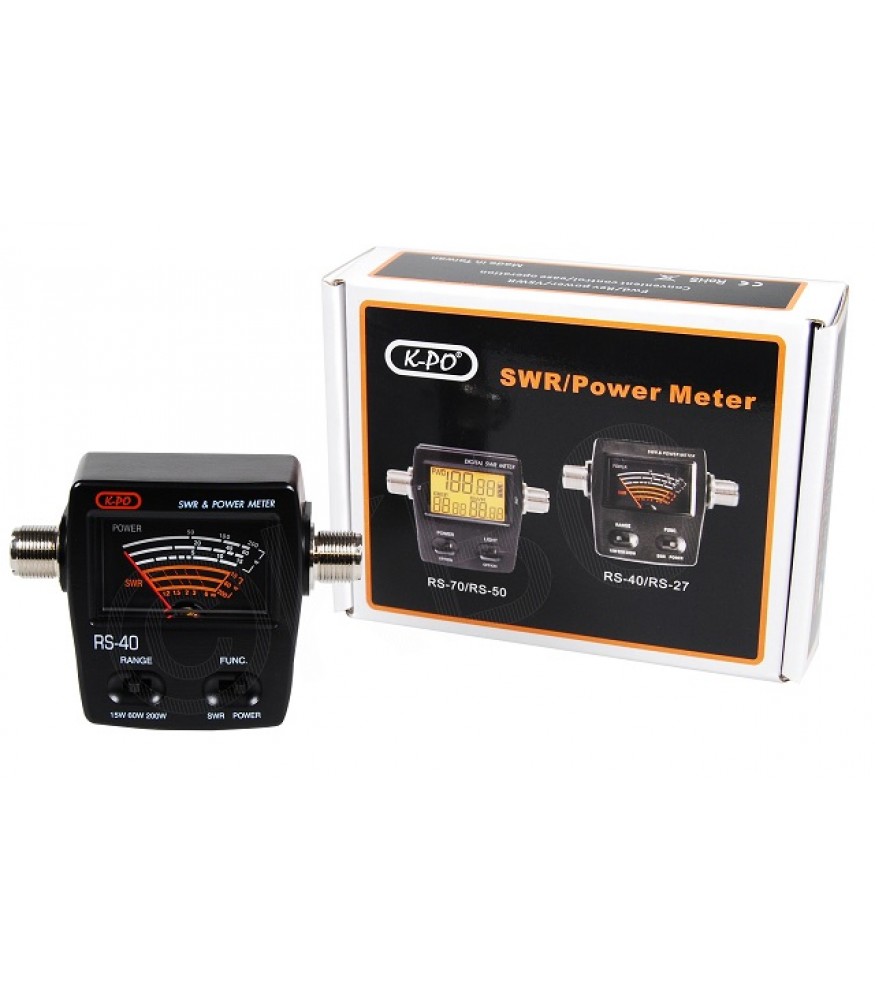

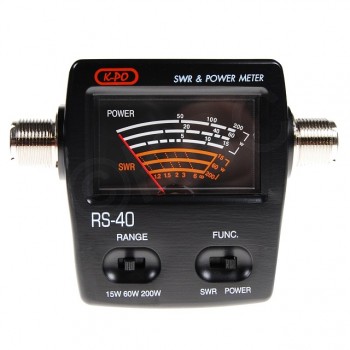

K-PO RS-40

K-PO RS-40

Compact SWR and Watt meter for the 2 meter and 70 cm band.

Features:

Clear analogue meter

Direct read out without calibration

Low insertion loss structure, can be connected permanently in your setup

Specifications:

Frequency range: 140-150 / 430-450 MHz

Measurable power range: 0-200W (15/60/200W switch)

Maximum power: 200W

Accuracy 15W range: +/- 10% (AVG)

Accuracy 60/200W range: +/- 5% (AVG)

Minimum power for measurement: 1W

Insertion loss: 0.3 dB or lower

Testing functions: Forward, SWR

Impedance: 50 Ohm

Dimensions (W x H x D): 70 x 78 x 30 mm

Weight: 180 gram

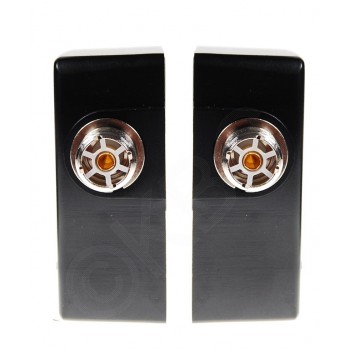

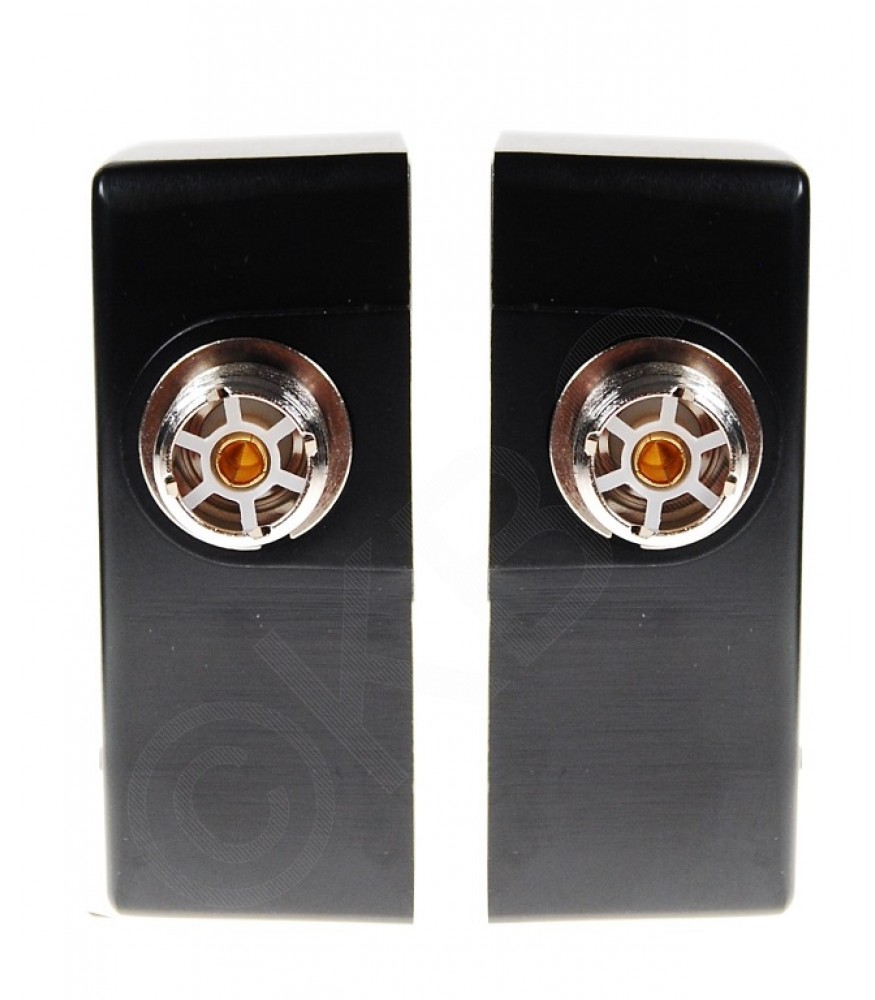

Connectors: 2x SO-239 (UHF-female)
