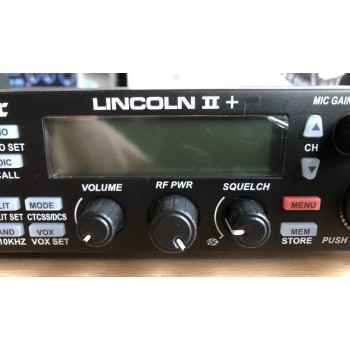

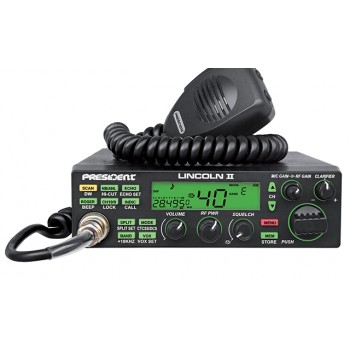

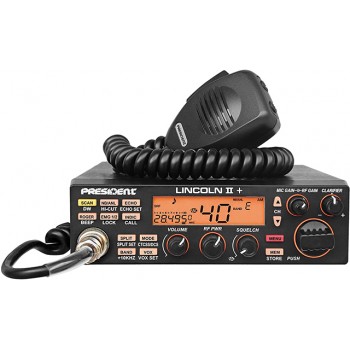

President Lincoln 2 plus export
- Availability: Discontinued
President Lincoln 2 plus exports
Now latest version: 2 plus (version 4)
We sell the export version, which runs from 24 - 30 Mhz and gives more than 35 Watt on FM.
12 watts AM and CW and over 35 watts on SSB.
So with version 2 Plus Export, you have the 10, 11, and 12-meter band!
There is a lot to arrange and read on the display.
The volume, vox, and squelch level can be read, the brightness of the light and color can be adjusted.
In the 400 channel export mode, the A band is for the regular 27Mc channels.
AM / FM / SSB / CW but also PA mode
Choice of 3 color display, green, amber blue.
You can also program President Lincoln 2 plus with free software and a USB cable with a computer.
FEATURES, FUNCTIONS, AND SPECIFICATIONS:
- Rotary switch and Up/down channel selector
- VFO Mode
- Volume adjustment and ON/OFF
- RF Power
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S-meter
- Public Address jack
- Vox function (Hands free)
- ANL filter , NB and HI-CUT
- RF Gain / Mike gain
- Clarifier
- Channels and memories scan
- 6 Memories
- CTCSS (38 tones)
- DCS (104 codes)
- Dim
- MENU function key
- Beep Function
- Roger Beep
- Mode switch AM/FM/LSB/USB/CW
- Dual watch
- Key locking
- SWR (Power Reading /SWR)
- Preset 9/19
- TOT (Time Out Timer) adjustable
- Front microphone plug
- External loudspeaker jack
Display Color: Orange, Blue, and Green
Dimensions H x W x D (in mm) : 52 x 170 x 250
Weight : 1.4 kg
PACKING INCLUDES:
1 Pc of Transceiver
1 Pc of Power Cord with Fuse
1 Pc of Microphone and its hanger
1 Pc of Mounting Bracket with Fixing Screws
1 Pc of User Manual
More details:
Transmission
Frequency allowance : +/- 300 Hz
Carrier power : 12 W AM / 28 W FM / 31 W USB-LSB / 12 W CW
Transmission interference : inferior to - 50 dBc
Audio response : 300 Hz to 3 kHz
Emitted power in the adj. channel : inferior to 20 ┬ÁW
Microphone sensitivity : 3 mV
Drain : 6 A (with modulation)
Modulated signal distortion: 1.8 %
Reception
Maxi. sensitivity at 20 dB sinad : 0,5 ╬╝V -110 dBm (AM)
0,35 ╬╝V -116 dBm (FM)
0.28┬ÁV-118 dBm (USB/LSB/CW)
Frequency response : 300 Hz to 3 kHz
Adjacent channel selectivity : 60 dB
Maximum audio power : 3 W
Squelch sensitivity : mini 0.2 ╬╝V - 120 dBm
maxi 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 400 mA nominal, 600 mA max
CTCSS Tone List
| No. | Freq. (Hz) | No. | Freq. (Hz) | No. | Freq. (Hz) |
|---|---|---|---|---|---|
| 00 - oF | OFF | 13 | 103,5 | 26 | 162,2 |
| 1 | 67,0 | 14 | 107,2 | 27 | 167,9 |
| 2 | 71,9 | 15 | 110,9 | 28 | 173,8 |
| 3 | 74,4 | 16 | 114,8 | 29 | 179,9 |
| 4 | 77,0 | 17 | 118,8 | 30 | 186,2 |
| 5 | 79,7 | 18 | 123,0 | 31 | 192,8 |
| 6 | 82,5 | 19 | 127,3 | 32 | 203,5 |
| 7 | 85,4 | 20 | 131,8 | 33 | 210,7 |
| 8 | 88,5 | 21 | 136,5 | 34 | 218,1 |
| 9 | 91,5 | 22 | 141,3 | 35 | 225,7 |
| 10 | 94,8 | 23 | 146,2 | 36 | 233,6 |
| 11 | 97,4 | 24 | 151,4 | 37 | 241,8 |
| 12 | 100,0 | 25 | 156,7 | 38 | 250,3 |
- DCS Code List
| Code No. | DCS (Octal) | Code No. | DCS (Octal) | Code No. | DCS (Octal) |
|---|---|---|---|---|---|
| 1 | 23 | 36 | 223 | 71 | 445 |
| 2 | 25 | 37 | 225 | 72 | 446 |
| 3 | 26 | 38 | 226 | 73 | 452 |
| 4 | 31 | 39 | 243 | 74 | 454 |
| 5 | 32 | 40 | 244 | 75 | 455 |
| 6 | 36 | 41 | 245 | 76 | 462 |
| 7 | 43 | 42 | 246 | 77 | 464 |
| 8 | 47 | 43 | 251 | 78 | 465 |
| 9 | 51 | 44 | 252 | 79 | 466 |
| 10 | 53 | 45 | 255 | 80 | 503 |
| 11 | 54 | 46 | 261 | 81 | 506 |
| 12 | 65 | 47 | 263 | 82 | 516 |
| 13 | 71 | 48 | 265 | 83 | 523 |
| 14 | 72 | 49 | 266 | 84 | 526 |
| 15 | 73 | 50 | 271 | 85 | 532 |
| 16 | 74 | 51 | 274 | 86 | 546 |
| 17 | 114 | 52 | 306 | 87 | 565 |
| 18 | 115 | 53 | 311 | 88 | 606 |
| 19 | 116 | 54 | 315 | 89 | 612 |
| 20 | 122 | 55 | 325 | 90 | 624 |
| 21 | 125 | 56 | 331 | 91 | 627 |
| 22 | 131 | 57 | 332 | 92 | 631 |
| 23 | 132 | 58 | 343 | 93 | 632 |
| 24 | 134 | 59 | 346 | 94 | 654 |
| 25 | 143 | 60 | 351 | 95 | 662 |
| 26 | 145 | 61 | 356 | 96 | 664 |
| 27 | 152 | 62 | 364 | 97 | 703 |
| 28 | 155 | 63 | 365 | 98 | 712 |
| 29 | 156 | 64 | 371 | 99 | 723 |
| 30 | 162 | 65 | 411 | 100 | 731 |
| 31 | 165 | 66 | 412 | 101 | 732 |
| 32 | 172 | 67 | 413 | 102 | 734 |
| 33 | 174 | 68 | 423 | 103 | 743 |
| 34 | 205 | 69 | 431 | 104 | 754 |
| 35 | 212 | 70 | 432 |
Download the free President Lincoln 2 plus software
| General | |
| Brand: | President |
| Product Code: | TXSR041 export |
| Brand | |
| Brand | President |
| Articlenumber | TXSE041 |
| Color | black |
| Transmit and receive | |
| Modulation | AM/FM, USB/LCB en CW |
| Transmit power | 31W AM, FM, USB, LSB, CW |
| mulitinorm | |
| Number of channels | 400 |
| Frequency range | 26 tot 30 |
| Version | |
| RF Gain | |
| Mic Gain | |
| Squelsh knob | |
| Automatic Squelsh | |
| CTCSS | |
| DCS | |
| Menu functions | |
| Roger Beep | |
| External loudspeaker plug | |
| Handsfree | |
| PA loudspeaker plug | |
| Scan function | |
| Display color | orange, green, blue |
| Power | 12 Volt |
| Dimensions | |
| Dimensions L x B X H (cm) | 17.0 x 25.0 x 5.2 |
| Dinframe | |
