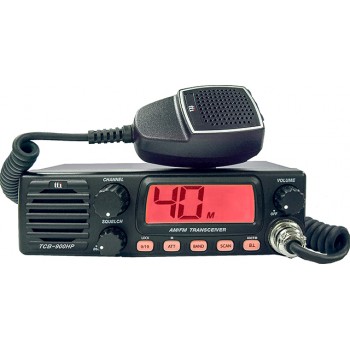

TTI TCB 900 HP export

TTI TCB 900 HP export CBRadio AM / FM 10 Watt dual voltage 12/24Volt input

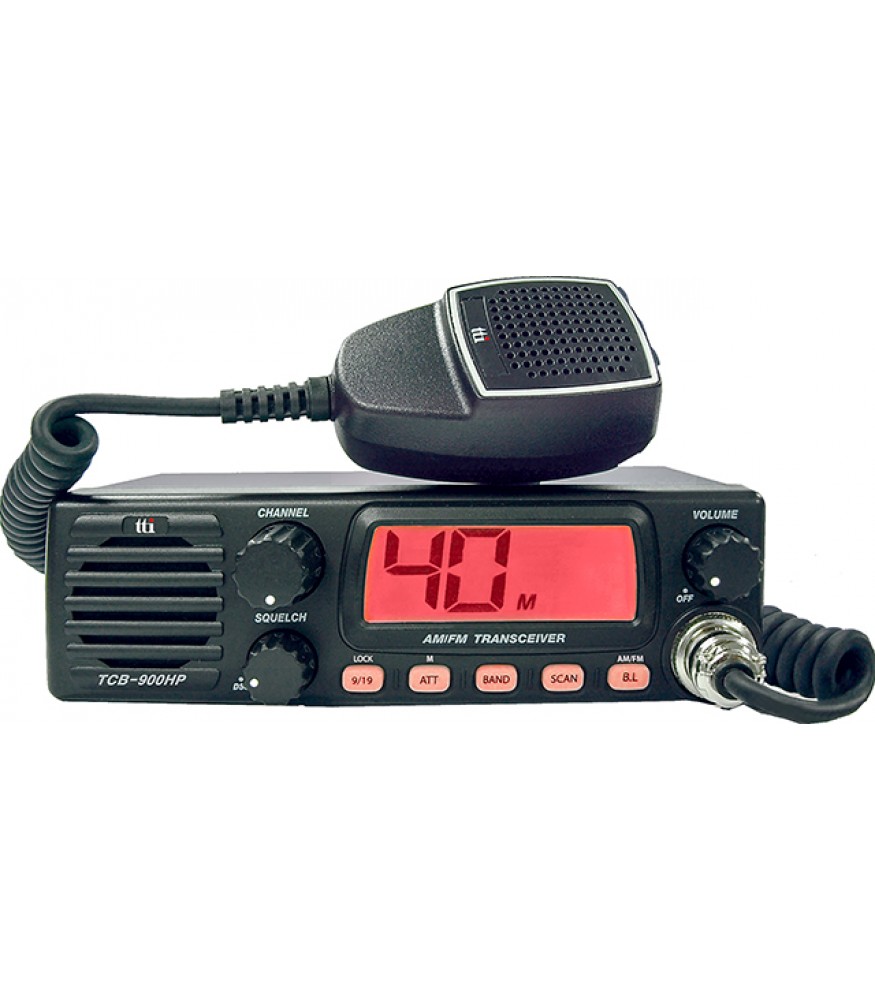

The TTI TCB-900 High Power CB radio is the latest model in the TTI CB range with an integral front speaker developed to give outstanding performance with clear and crisp audio. Out of the box it has the option for either a traditional bracket mount or it can be mounted in a DIN sized hole.

The TCB-900 HP also has a very short back making it easy to fit in apertures of limited size and also includes a three colour selectable LCD display.

Features:

20 W Output power

Front mounted speaker

Short Body

DIN size

12/24V input

Multiple bands for usage in most EU countries

AM/FM Operation (subject to country regulation)

DSS (Dynamic Squelch System)

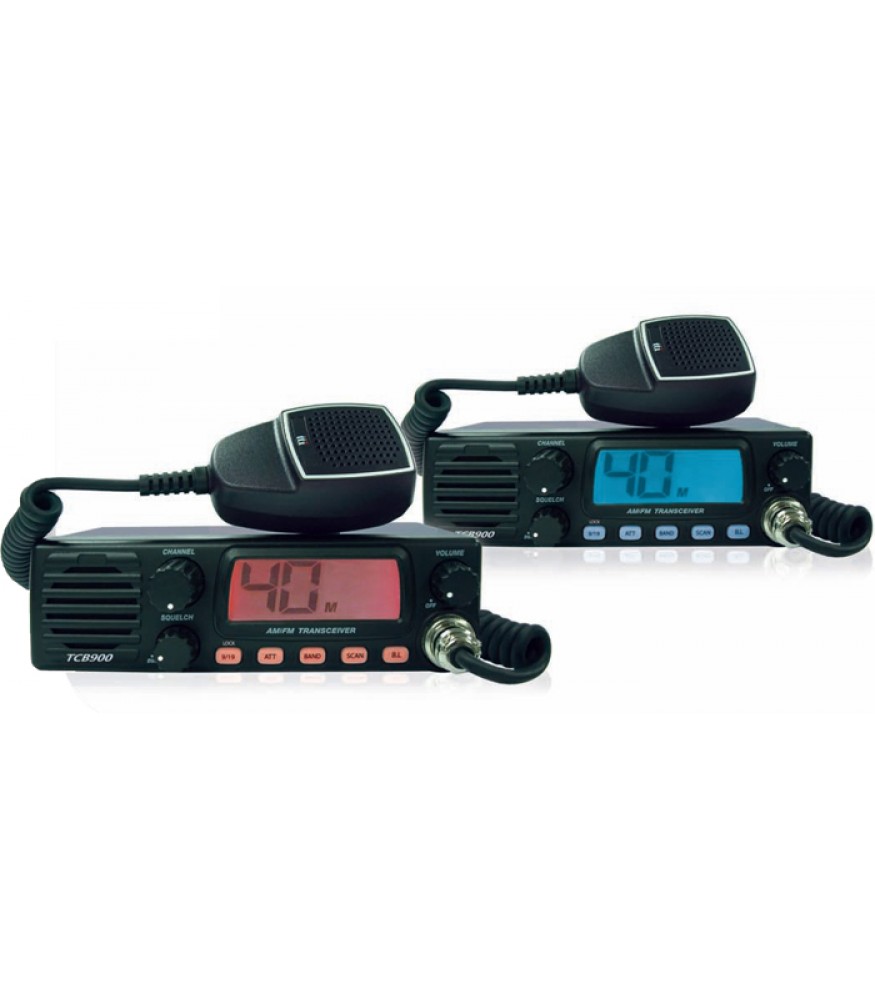

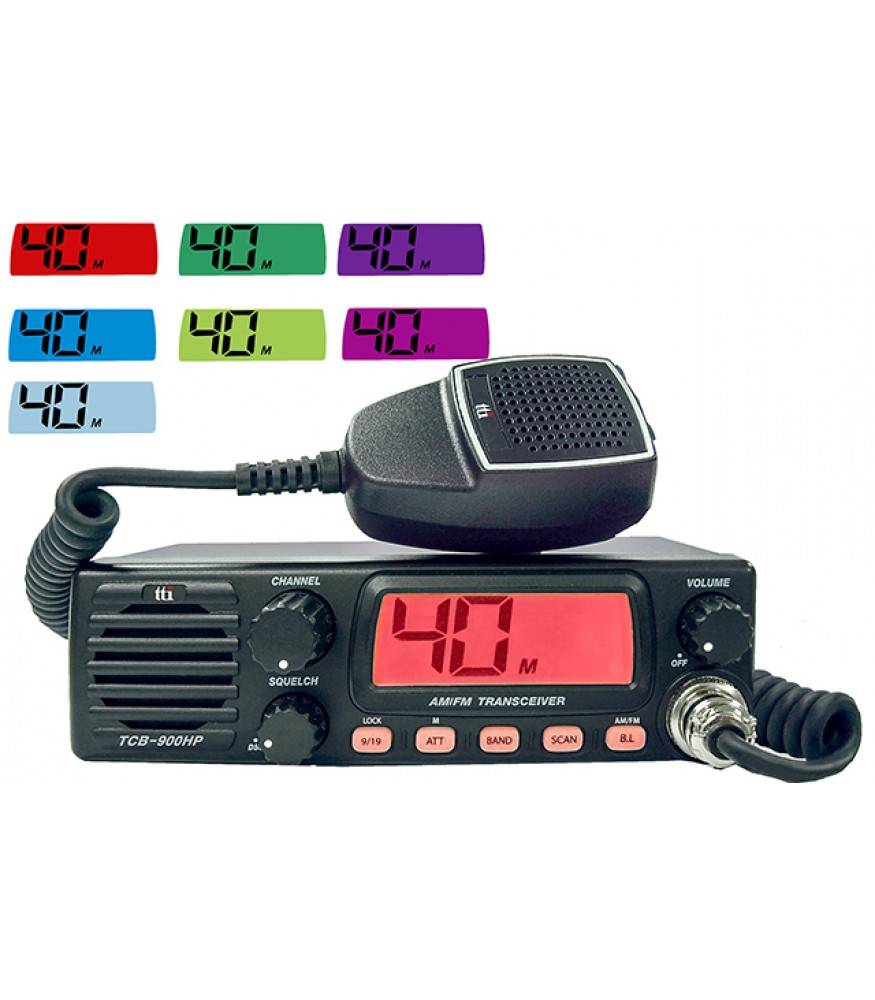

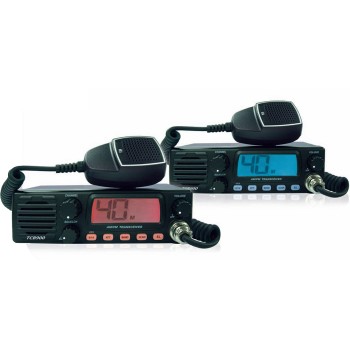

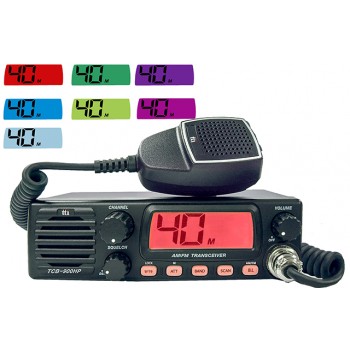

Multi-Colour Backlighting

Emergency Channel(9/19) / Keypad Lock function button

Microphone Gain

Attenuation

Scan function

Speaker Mute

Menu Mode (Microphone Gain, Call tone, Beep Tone On/Off, TOT, Backlight Dimmer)

Dimension (W x H x L) : 170 x 51 x 94mm

Technical specifications:

Channel: 40

Frequency Range: 26.965 MHz - 27.99125 MHz (26.965 MHz - 27.405 MHz (CEPT),

Operating Mode: F3E (FM), A3E (AM)

Frequency Control: PLL Synthesizer

Frequency Tolerance: 0.002%

Operating Temperature Range: -10 to 55 Degrees Celsius

Microphone: 6 Pin plug in type

Antenna Connector: SO239 Type

Weight: 978.5g

Power Output: Duty cycle 10% 4Watts @13.8V DC. 20 watt in modified export mode by CBShop.

Modulation: AM (85% to 95%), FM (1.8KHz +- 0.2KHz)

Frequency Response: 300Hz to 3000Hz

Output Impedance: 50 ohms, Unbalanced

Harmonic Suppression: Less than -54dBm

Current Drain: AM Full Mod. 1.6A Max

Receiving system: Dual conversion super-heterodyne

IF Frequencies: Double Conversion 1st 10.695MHz / 2nd 455KHz

Sensitivity: 0.7uV for 10dB (S+N)/N in AM, 0.5uV for 20dB SINAD in FM mode

Audio Output Power: 4.0W @ 8 ohm

Audio Distortion: Less then 8% @ 1KHz

Image Rejection: More than 60dB

Adjacent Channel Rejection: More than 60dB

Conducted Spurious: Less than -57 dBm

Frequency Response: 300 to 2500Hz

Built-in Speaker: 8 ohms, round

Squelch: Adjustable; Threshold less than 1 microvolt, DSS; Less than 2 microvolt
